MPS EX150

MPS EX150 is a water-resistant emulsion explosive equivalent to dynamite. MPS EX150 is a new generation emulsion explosive designed for difficult conditions. It is produced for use in underground and surface mining and tunnel excavation works, especially in small diameter holes. It provides high efficiency and work safety in all kinds of rock conditions.

IGNITION APPLICATION

MPS EX150, which provides an environment resistant to friction and impact compared to its equivalent nitroglycerin-based explosive materials, is perfectly resistant to water and the gases released after explosion in underground applications are very low. Gold 150 is in class 1 in smoke classification. It is used as a baiting explosive in all kinds of underground and aboveground blasting, final cutting, preliminary cutting, step and channel blasting.

PACKAGING PRODUCT DIMENSIONS

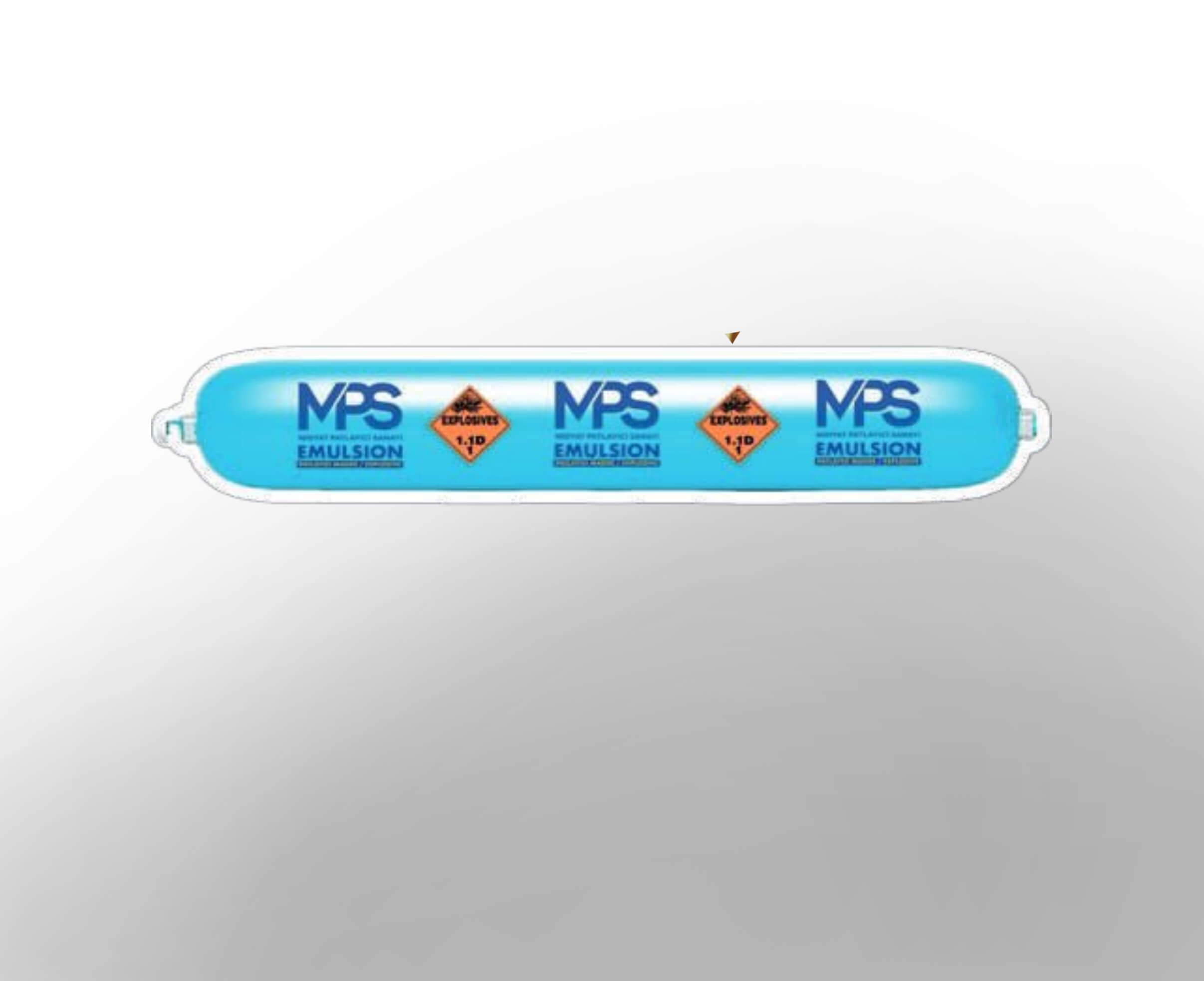

The clip-on-both-sides cartridges listed below are manufactured in high-density PE. The cartridges are in cardboard boxes of 20 kilograms each.

STORAGE TRANSPORTATION ATTENTION

Explosives should be stored in well-ventilated, dry warehouses in accordance with the regulations. MPS EX150; It should never be used in underground facilities containing explosive gas and methane gas.

BM Name: Explosive Material Type E
BM Number: 0241
IMDG Code: 1.1 D

WHERE IT IS USED

All kinds of underground and tunnel blasting
In open pit blasting
In all construction projects
In pre-cutting applications
In patar beats
In all special blasting applications

ADVANTAGES

Provides better fragmentation thanks to its high blasting speed.
Reliable use with high sensitivity
Reliable use against friction and impacts
Low gas output after blasting
Excellent resistance to water

Standard Cartridge Dimensions (mm)	Cartridge weight (gr)	Number of Cartridges in a Box (mm)
27x235	160	80
32x265	250	50
32x425	400	80
34x230	250	50
34x360	400	80
36x215	250	40
36x420	500	40
38x370	500	40
40x340	500	40

Thermodynamic Technical Specifications	Unit	MPS EX150
VOD in 40mm Cartridge Steel Tube	m/s	5000 - 5500
Energy	kj/kg	4455
Heat of Explosion	°K	2950
Gas Volume	It/kg	890
Intensity	g/cm3	1.18-1.20
Water Resistance	-	Perfect
